Design your workbench

Template, dimensions, worktop and feet

Searches all sections · Ctrl / ⌘ K

Construction templates6 layout options · dimensions preserved

Changes the frame layout and shelf arrangement. Dimensions, materials, profiles, joints and existing drawers are preserved.

Wall and machine benches also change the installation or enable machines. Drawers are only added if none exist yet. Use Undo to return to your previous design.

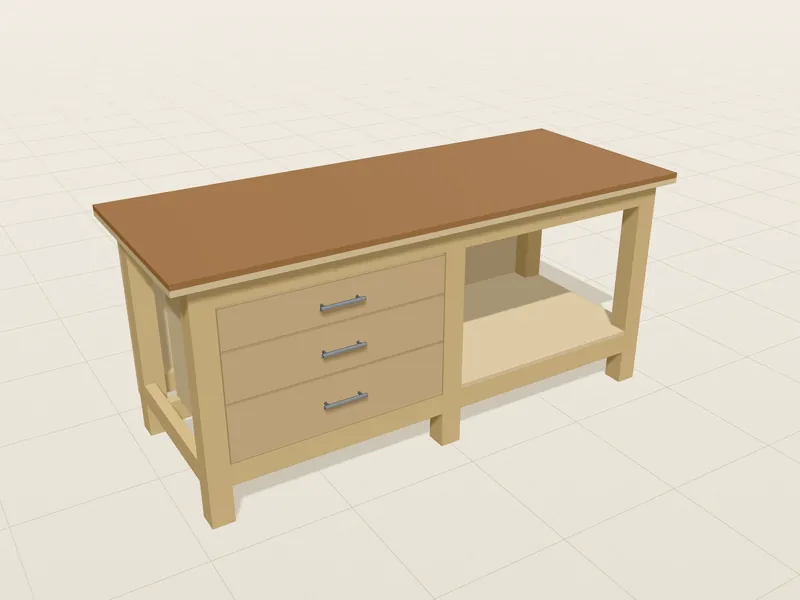

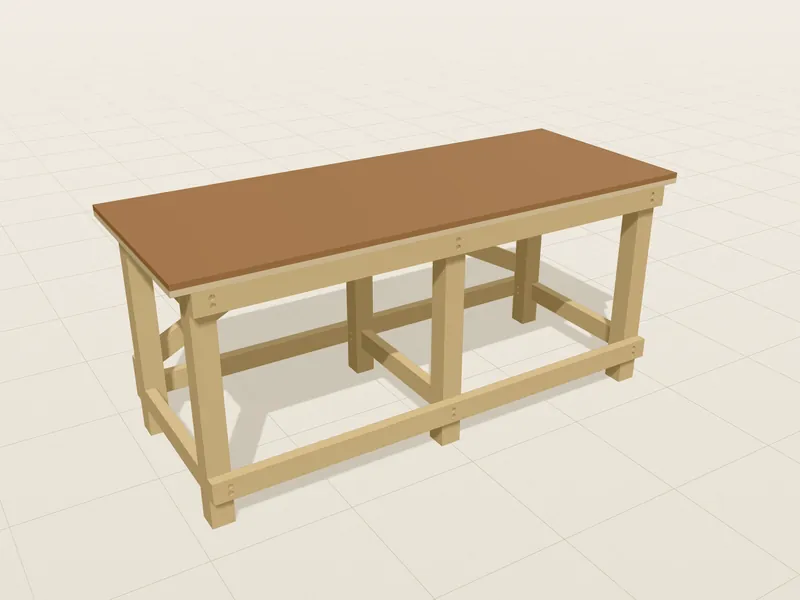

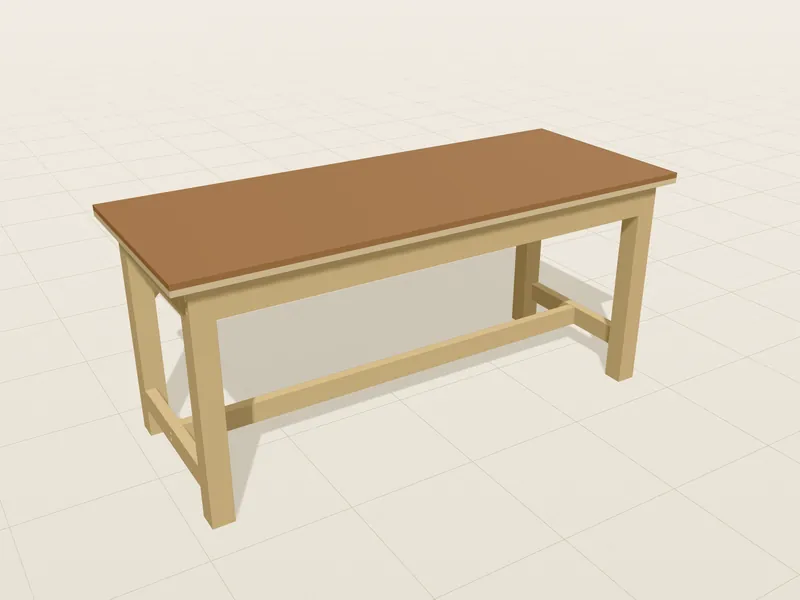

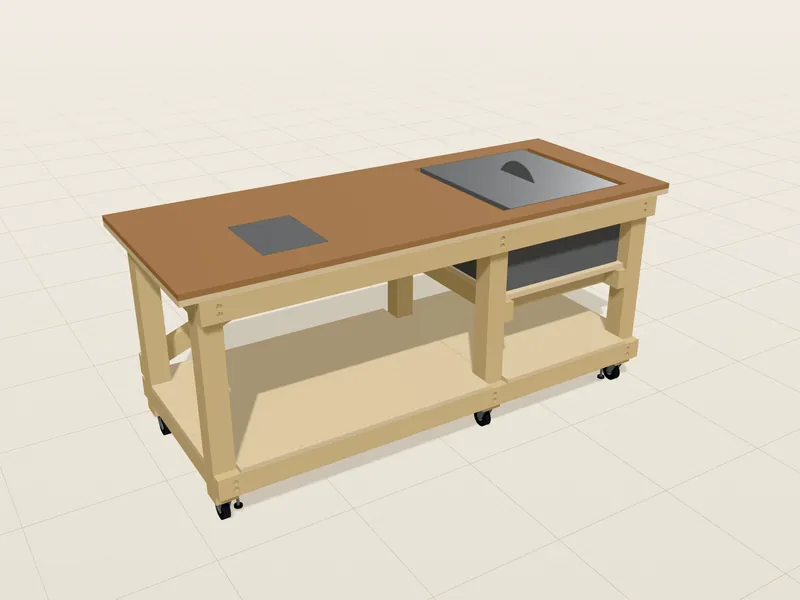

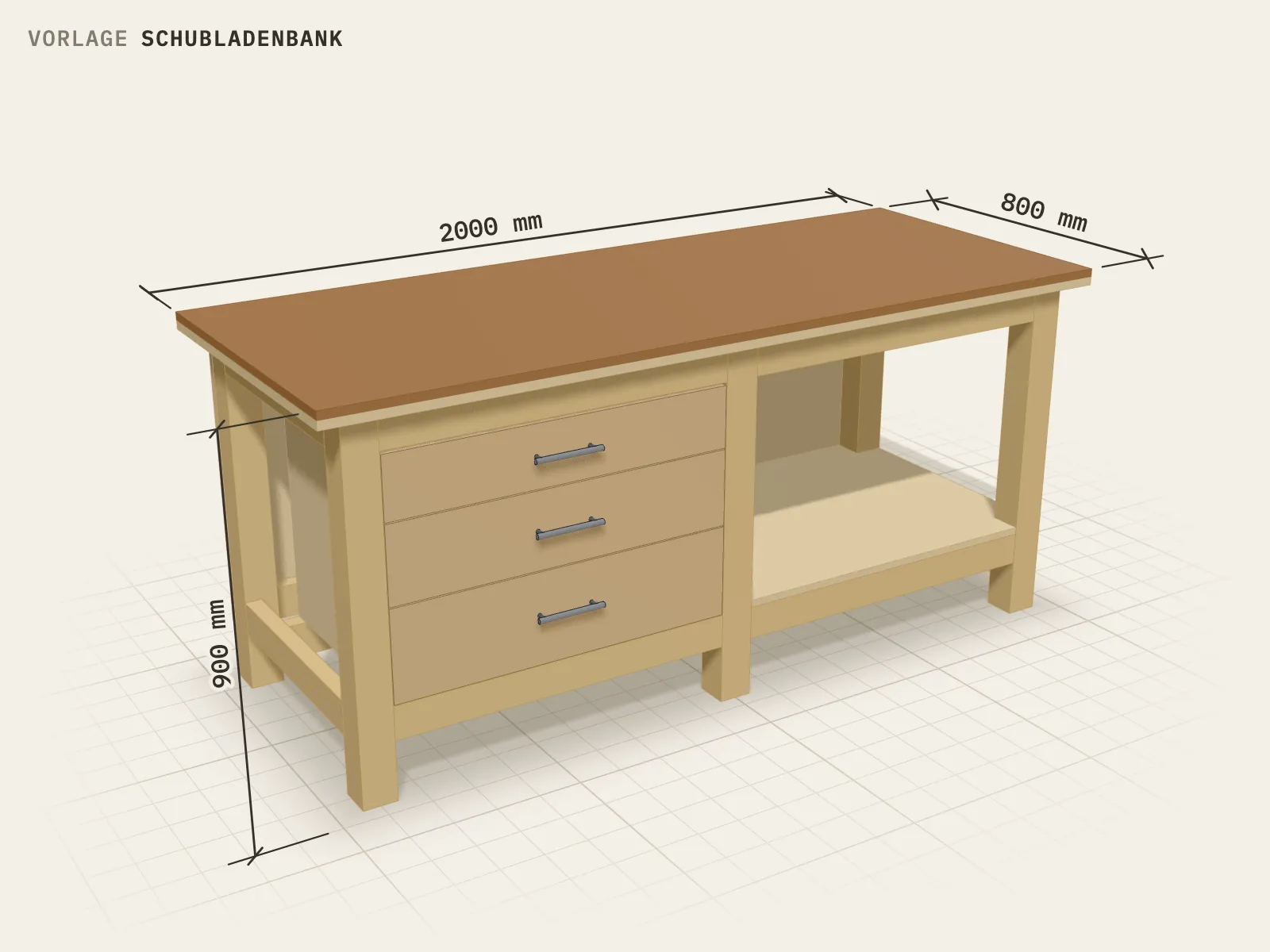

Dimensions & installation2000 × 800 × 900 mm · Freestanding

Installation

Accessible from all sides; machines can occupy any of the four corners.

Overall lengthmmOverall depthmmWorking heightmm

Load class

General woodworking and smaller machines; preliminary sizing with a 2 kN point load. Planning aid, not a verified structural design.

JointsHalf-lap joint · 0 custom assignments

Default joint

Difficulty 2/3Half-lap joint

Large glue area and positive fit, with manageable machining.

Saw and chisel or router · Wood glue; no generic retaining screws

Workshop rules & sourcesFit, glue, screws and wood movement

Assembly aid, not structural approval. Screw lengths and fixing positions are planned for this design in the PDF.

Fit mating joints on test pieces. Glue faces must be smooth, fully contacting and gap-free. Glue and clamp square.
WOOD: half-lap joints ↗

Tenon thickness about one third of rail width. Make mortise first, then fit tenon without force. The app adds 1.5 mm glue clearance at blind mortise ends; continue checking remaining timber around adjacent pockets.
WOOD: mortise and tenon ↗

Use clean, untreated glue faces; acclimatise timber first. Follow product clamping and curing times. Titebond recommends at least 24 hours without loading new glue joints.
Titebond: using wood glue ↗

Consider grain direction, moisture changes and fastening direction. A geometrically fitting screw does not verify joint load capacity.
USDA FPL: wood fastenings ↗

Solid wood tops must be able to move across the grain. Do not rigidly glue or clamp them to the frame over their entire width.
Rockler: movable worktop fixings ↗

For metal connectors, use only the specific manufacturer's fixing set and hole pattern. Ordinary countersunk screws are not a general substitute.
Simpson Strong-Tie: connector fixings ↗

Joint by rail groupAll groups use the default joint

Upper longitudinal railsUpper cross railsLower longitudinal railsLower cross rails

WorktopEdge-glued beech panel · 40 mm

Worktop size2000 × 800 mm · linked to overall size

Link worktop to overall sizeUnlink to use a different worktop size

Worktop lengthmmWorktop depthmm

Layer 1Working surface

MaterialThicknessmmReplaceable sacrificial layer

Feet & castors25 mm levelling feet

Support typeLevelling foot heightmm

Live model

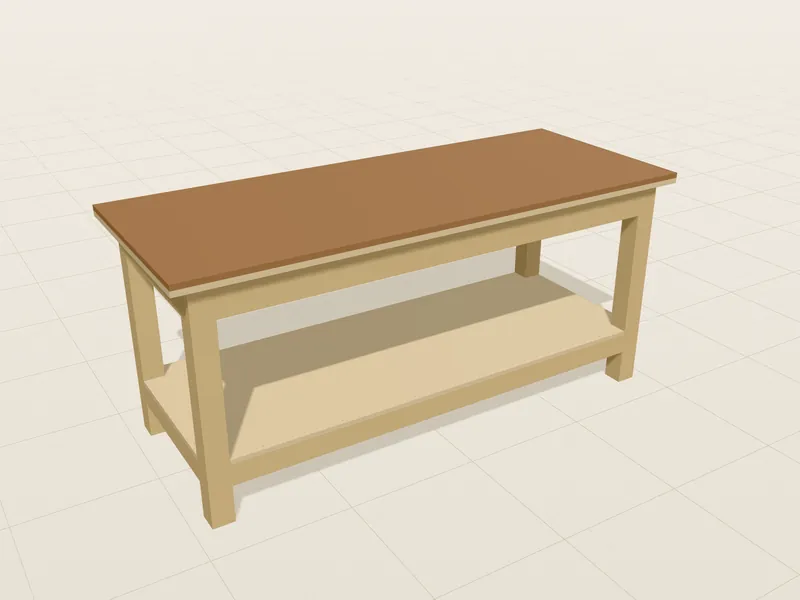

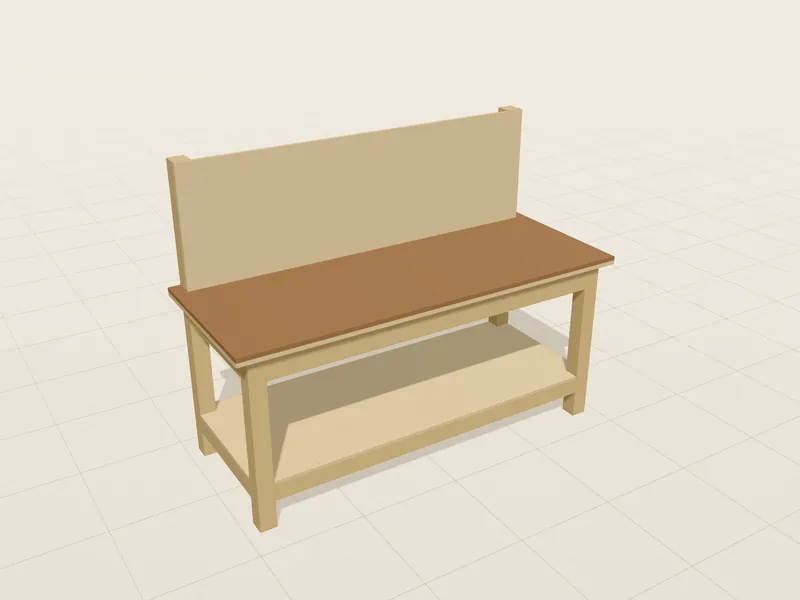

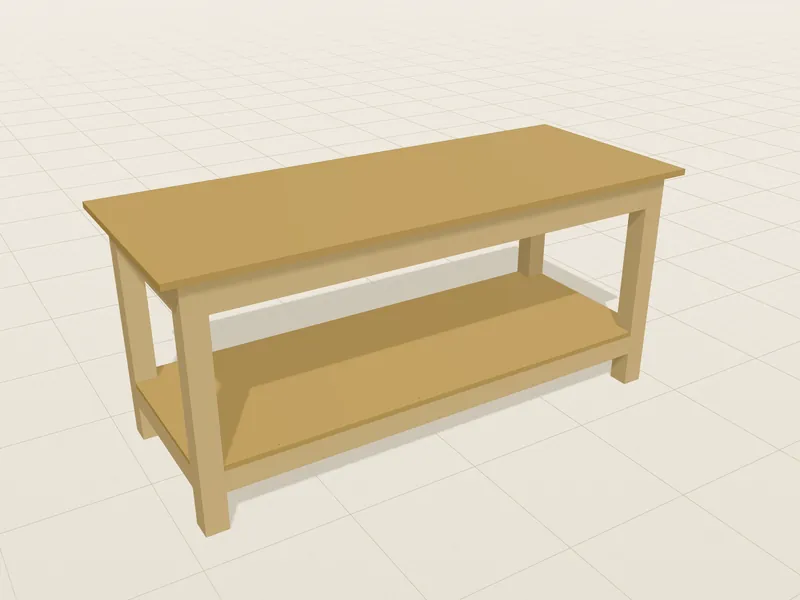

2000 × 800 × 900 mm6 legs · worktop 40 mm · approx. 117.3 kg

More view options

Hide assemblies – does not change parts or dimensions.

Drag: rotate · right-drag: pan · scroll: zoomOne finger: rotate · Two fingers: pan / zoomClick a part: select · Delete: remove · Undo: restore

Manufacturing

Plan & shopping

27 wooden parts72 hardware items

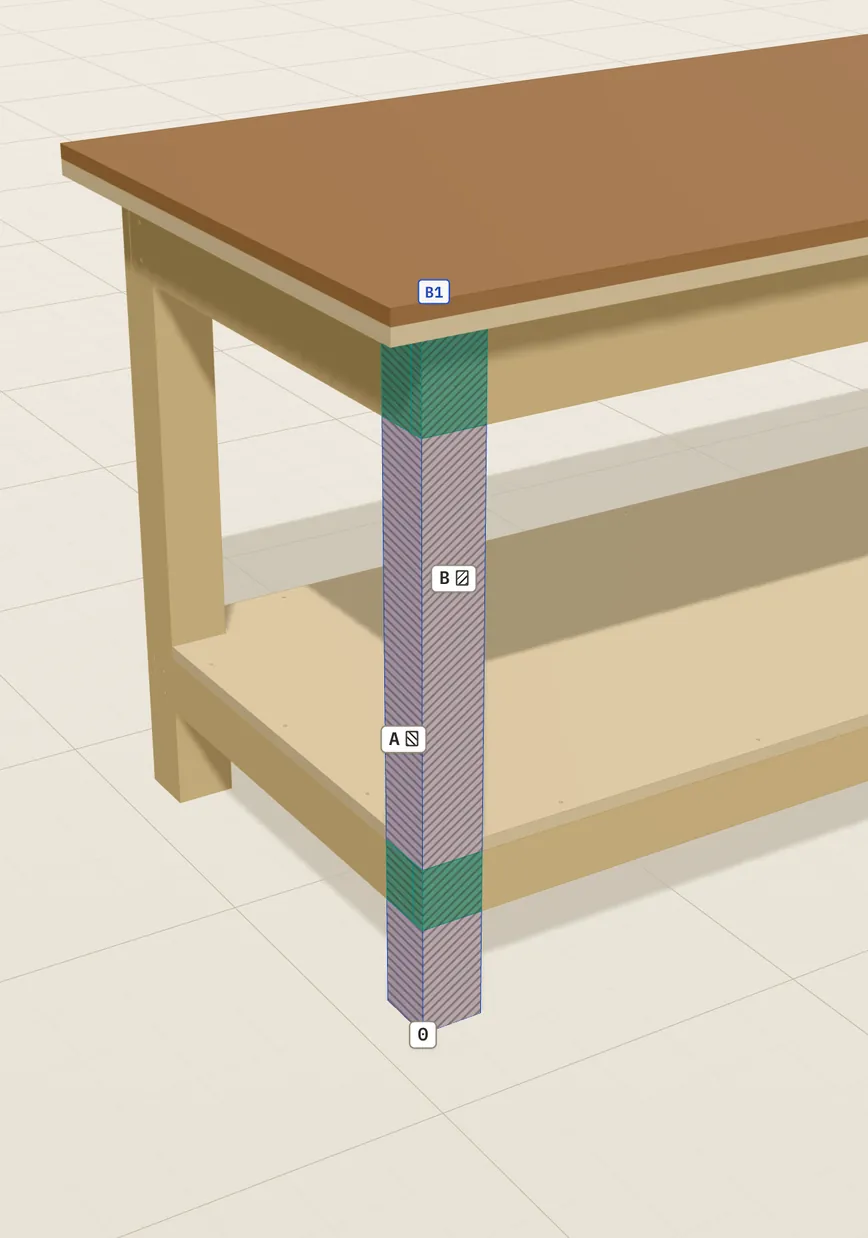

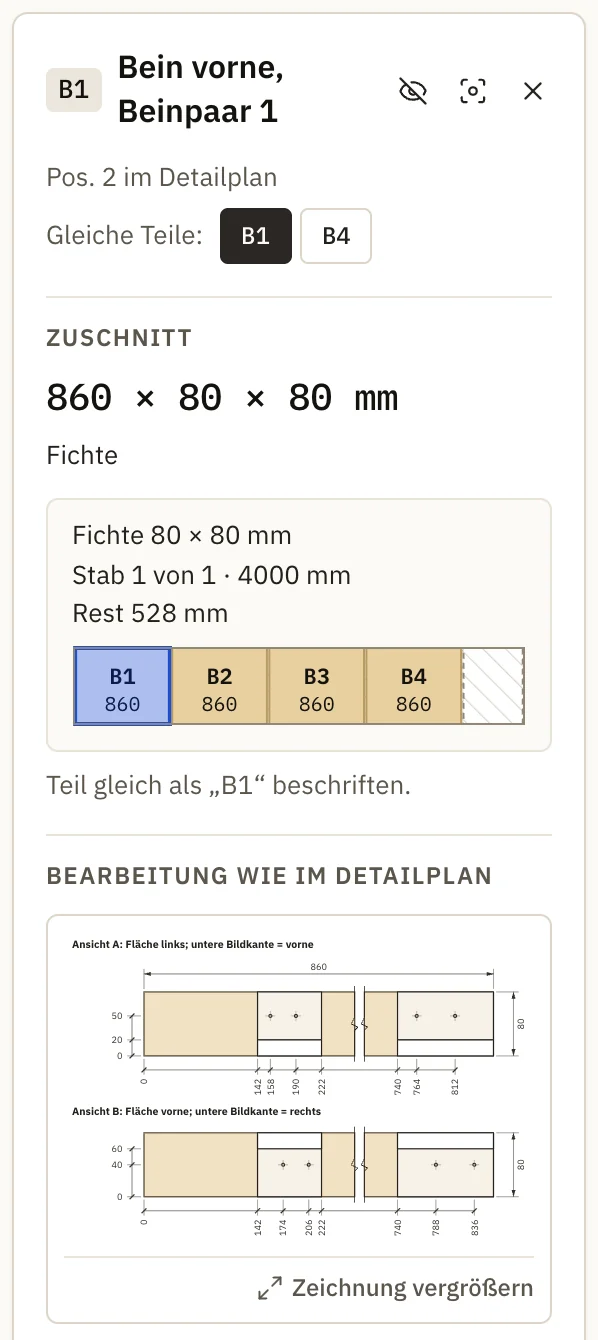

Click a part in the 3D model or open a parts-list group. Removing a part changes the model and cutting plan, not just its visibility.

Find a wood part

Part / quantityLength × width × thickness · mm

Hardware & feet (6)

Height-adjustable levelling footAssembly height 25 mm6×

Shelf support bracket with fixing setTo suit 45 × 45 mm support; hole pattern and connector screws as specified by manufacturer12×

Panel screw with washer5 × 130 mm; Flat head + washer 5.5/15 × 2 mm (set)9×

Panel screw4 × 40 mm; Countersunk head flush25×

Panel screw4 × 35 mm; Countersunk head flush19×

D3 wood glue750 ml container; assembly supply, consumption per glue manufacturer1×

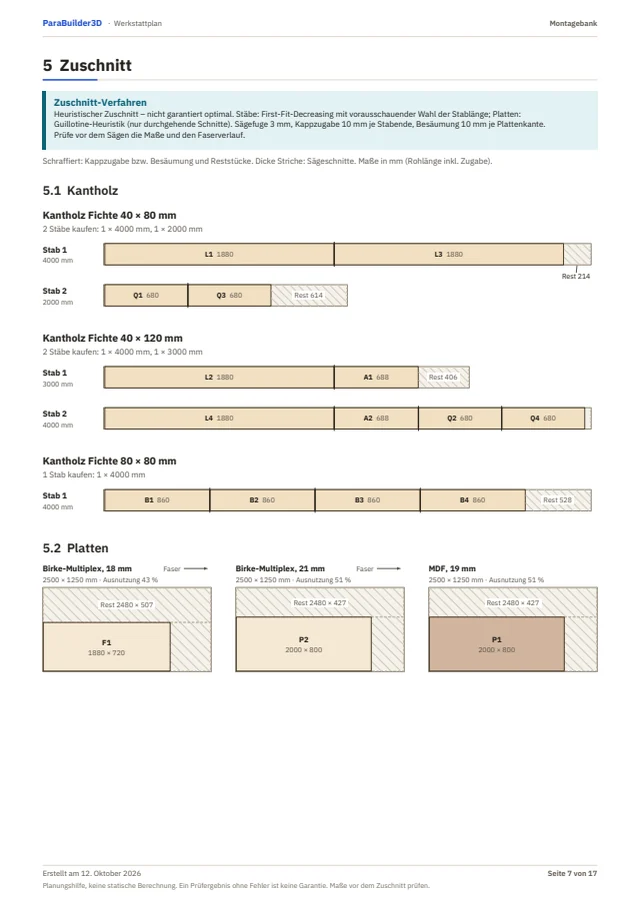

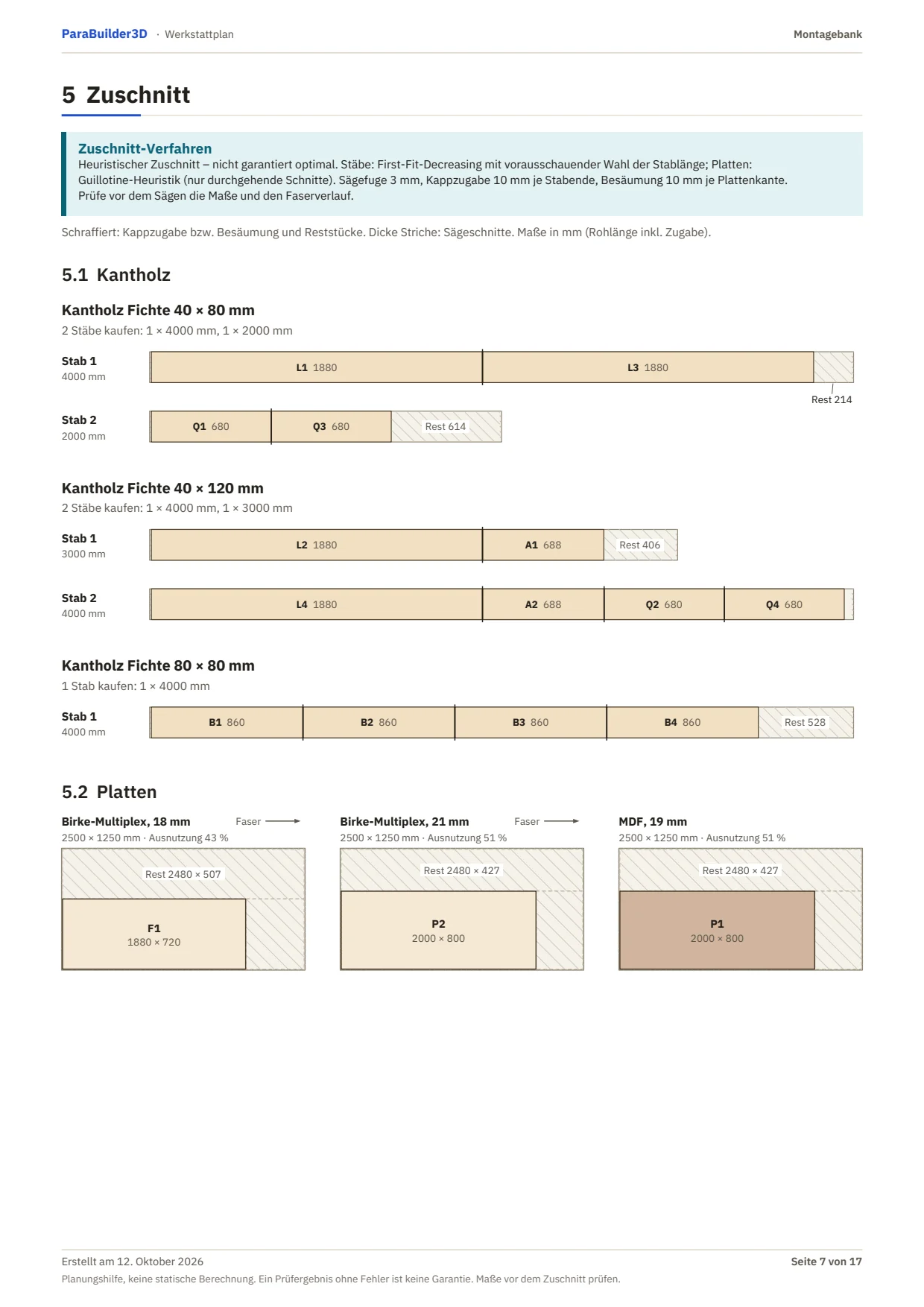

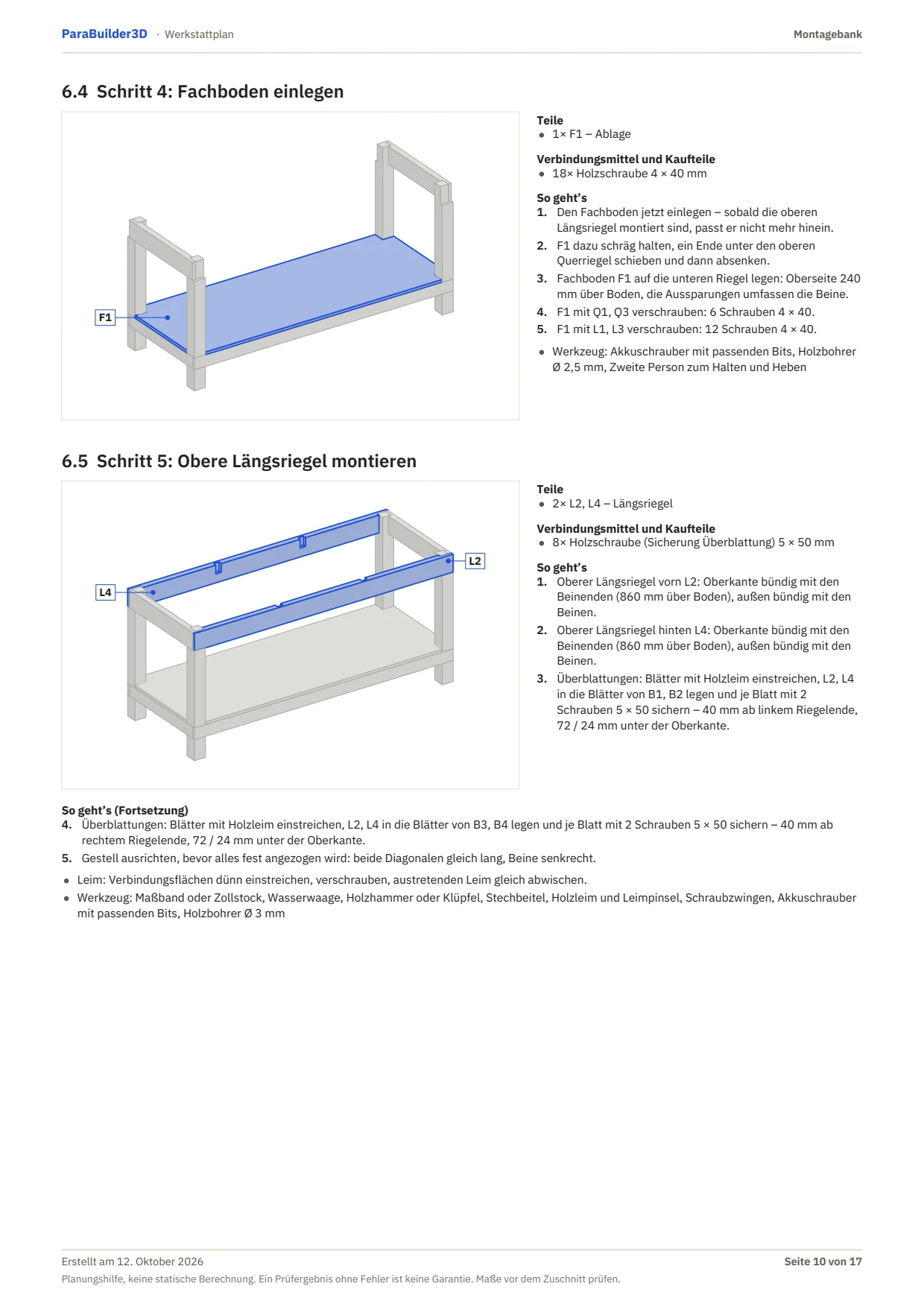

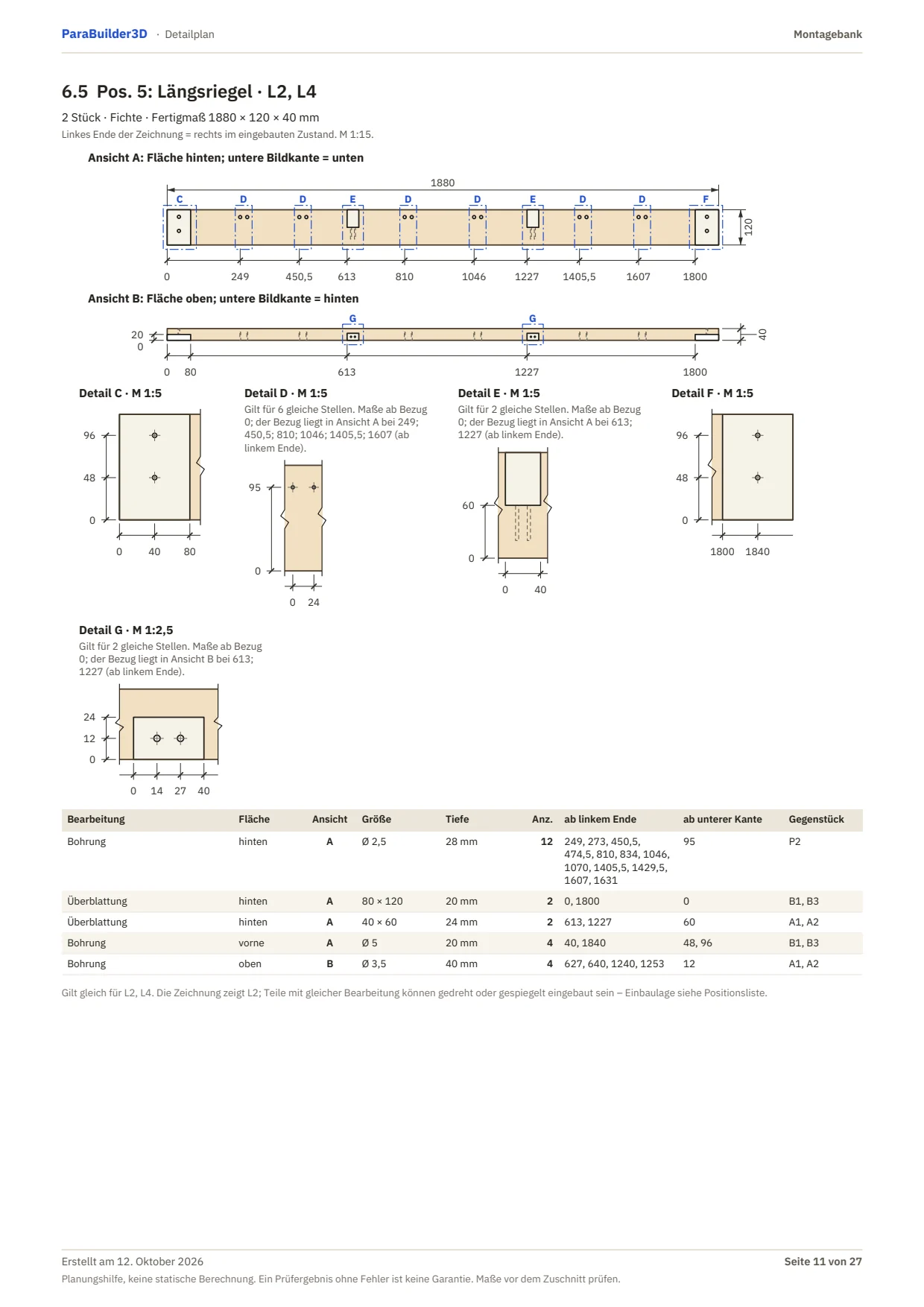

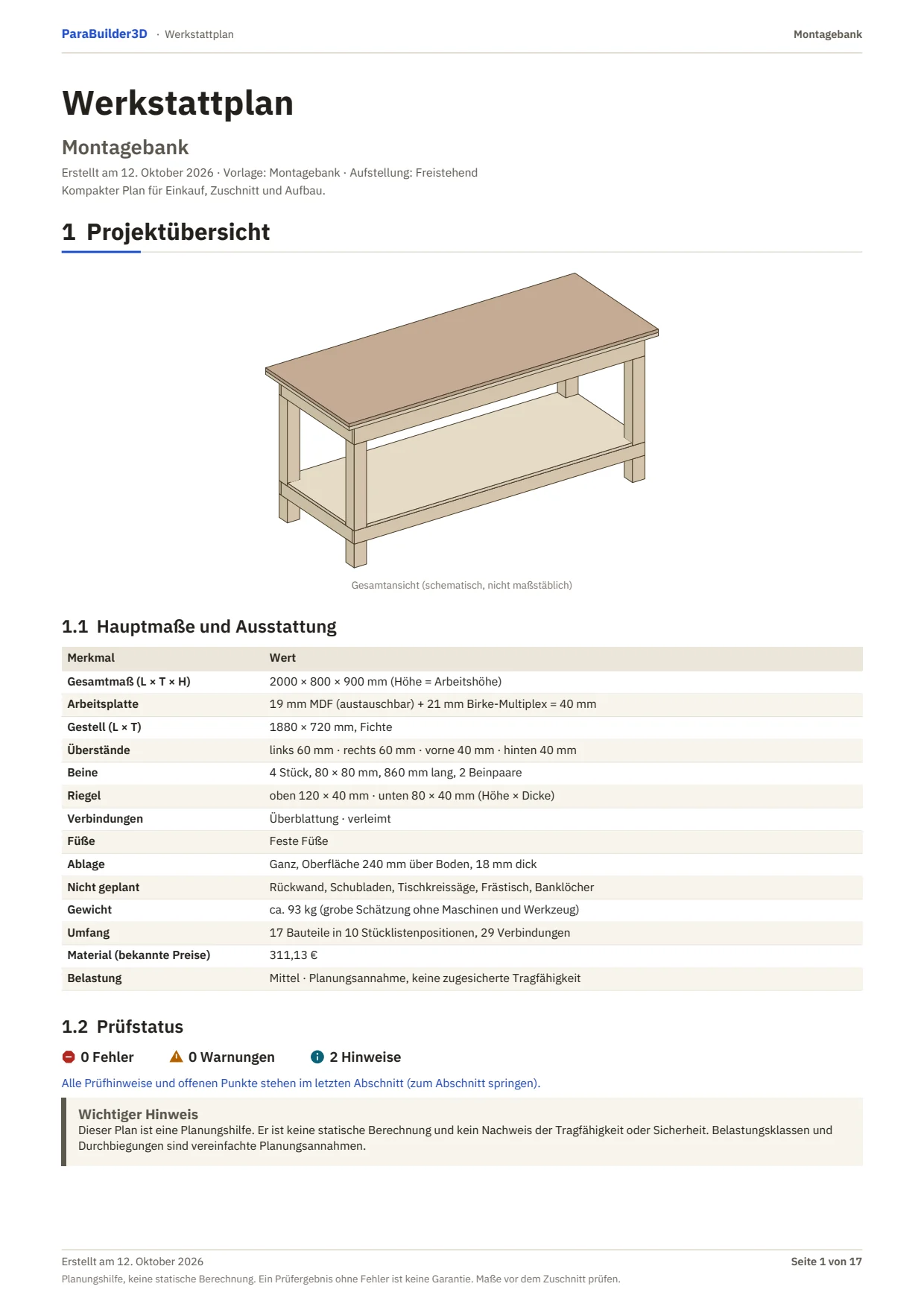

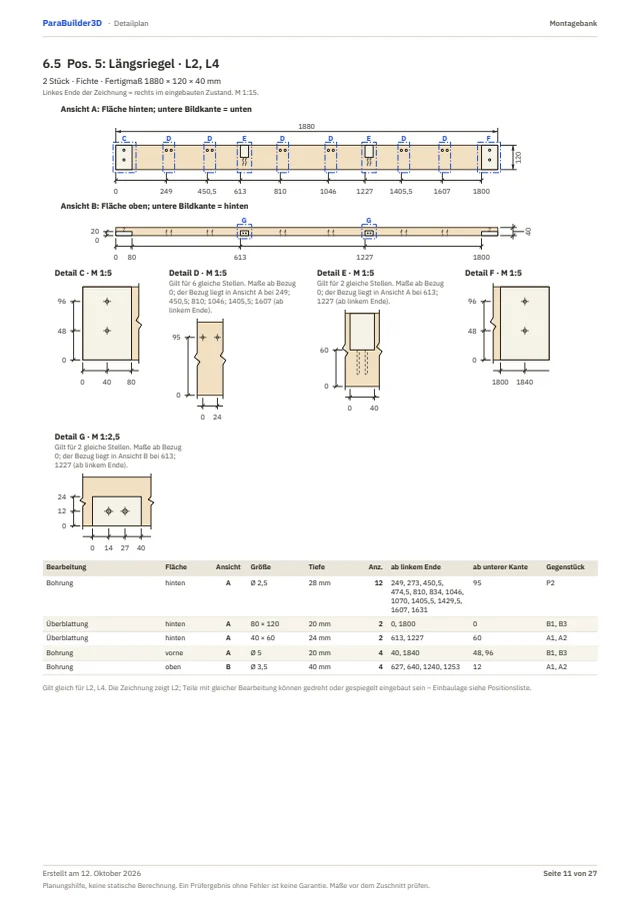

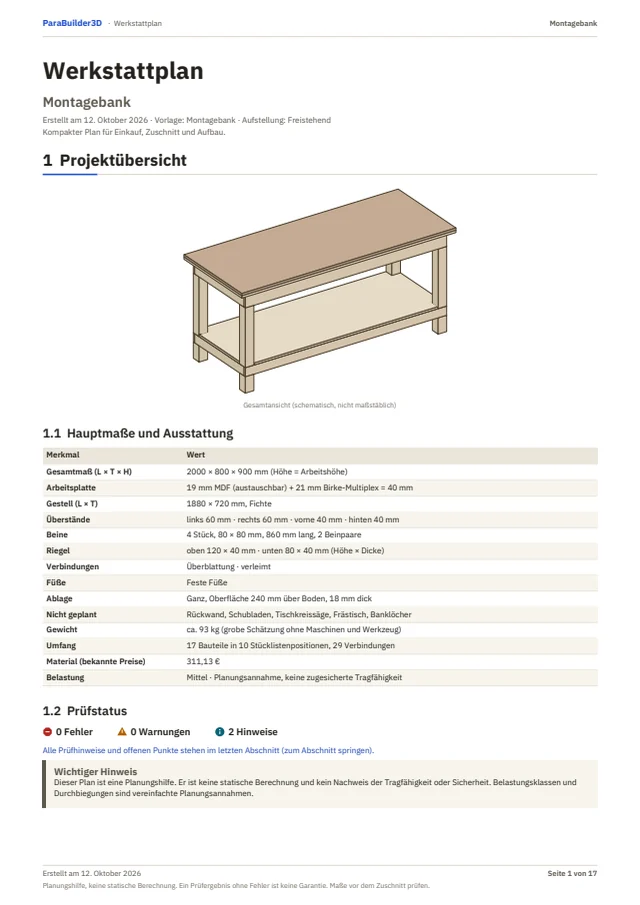

2 PDFs in a ZIP · Assembly, cutting & shopping
